Huashi Type Box Substation (short for Huabian) is a professional prefabricated box substation specially customized for new energy power generation projects, including photovoltaic power stations and wind farms. It is an innovative integrated substation combining the compact advantages of American-type box substation and the standardized configuration advantages of European-type box substation, filling the professional demand gap for new energy boost power distribution scenarios.
The whole product is designed, manufactured and tested in strict accordance with IEC 60076, IEC 62271, IEC 61439 international standards. It integrates high-voltage switching system, new energy boost transformer, low-voltage distribution system and intelligent protection monitoring device. Adopting the unique structural design of external exposed radiator and independent open transformer compartment, it solves the heat dissipation pain point of traditional box substations in long-term full-load operation of new energy projects.
Consistent with the unified international bidding standard of our full series transformers, two efficiency and pricing grades are available: 0.0901 USD/W (Standard IEC Efficiency Model) and 0.102 USD/W (IEC Ultra-Low Loss Energy-Saving Model). The high-efficiency version is about 13.21% higher in unit price, more suitable for 24-hour continuous full-load operation of large-scale new energy power stations.
1. Unique Hybrid Structure, Integrating Advantages of European & American Types
Huabian adopts a differentiated innovative layout different from conventional European and American box substations: the high-voltage unit inherits the compact and highly sealed design of American-type equipment, saving floor space; the transformer compartment adopts open external heat dissipation structure, breaking the closed heat dissipation limitation of European box substations; the low-voltage unit retains the standardized modular layout of European-type equipment, with sufficient operation and maintenance space. It perfectly adapts to the full-load and long-cycle operation characteristics of photovoltaic and wind power projects.
2. Open External Heat Dissipation, Super Strong Full-Load Adaptability

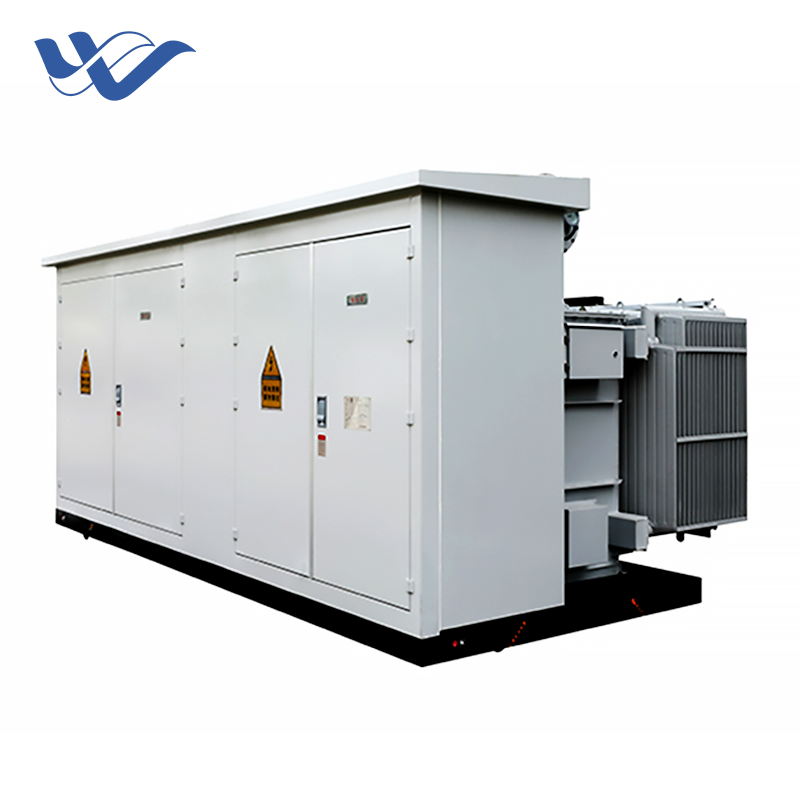

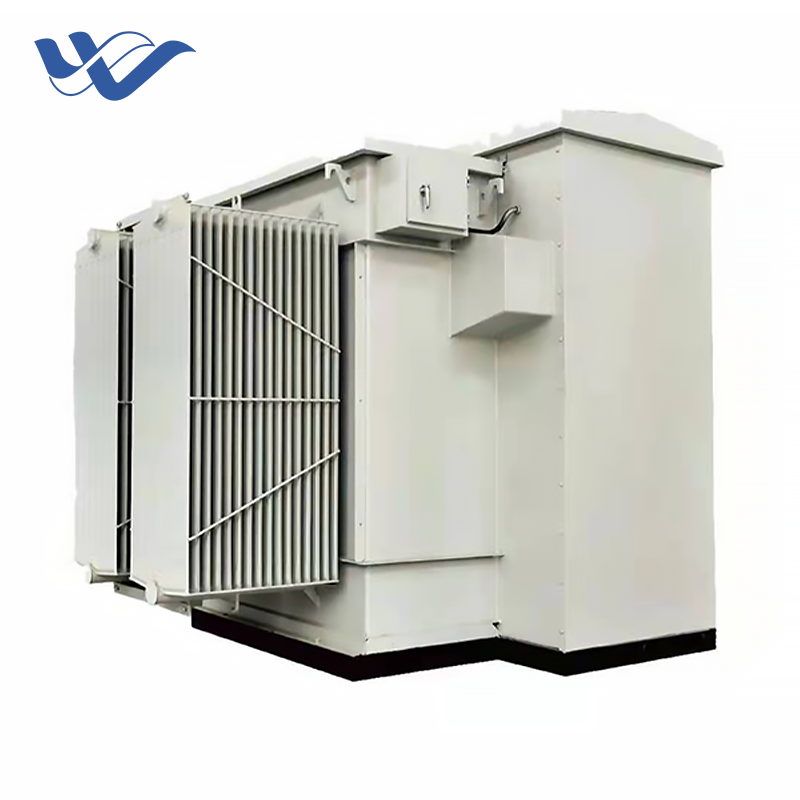

Different from fully enclosed traditional box substations, the transformer radiator of Huashi box substation is exposed outside the box body, with natural air convection heat dissipation without dead angle. It effectively solves the problems of high temperature rise and poor heat dissipation of closed box substations under long-term full-load and peak overload conditions of new energy power stations. It can stably operate in high-temperature, high-dust and open-air environments such as deserts, Gobi and mountainous wind farms for a long time.
3. Professional New Energy Boost Design, Stable Grid Connection Performance
Optimized electromagnetic design for new energy voltage fluctuation and harmonic characteristics, with strong overvoltage resistance and anti-harmonic interference capability. It supports 0.69kV low-voltage boost to 10kV/35kV grid-connected operation, matching the mainstream voltage grade configuration of global photovoltaic and wind power projects. The equipment has strong overload tolerance, which can cope with instantaneous power surge and intermittent power generation fluctuation of new energy units.
4. Low-Loss All-Copper Winding, Two IEC Efficiency Grades
Built-in new energy special low-loss oil-immersed transformer, adopting 99.99% high-purity oxygen-free copper transposed winding and high-permeability oriented silicon steel core, all loss indicators comply with IEC 60076-10 standard test specifications:
0.0901 USD/W Standard Model: Meets basic IEC efficiency standards, cost-effective, suitable for small and medium-sized distributed new energy projects;
0.102 USD/W Ultra-Low Loss Model: Optimized no-load and load loss parameters, significantly reducing long-term power loss of power stations, ideal for large-scale centralized photovoltaic power stations and wind farm projects with long-term continuous operation.
5. Intelligent Protection & Remote Monitoring System
Equipped with new energy special integrated microcomputer protection device, supporting overload, short-circuit, overvoltage, undervoltage and fault locking protection. It realizes complete four-remote functions (remote measurement, remote signal, remote control, remote regulation), compatible with MODBUS and IEC61850 communication protocols. It can be connected to the remote centralized monitoring platform of new energy power stations to realize unattended intelligent operation.
6. High Weather Resistance & Outdoor Durability
The box body adopts thickened galvanized steel plate + multi-layer outdoor weather-resistant anti-corrosion coating, passing strict salt spray and aging tests. The overall protection grade reaches IP33, with rainproof, dustproof, anti-ultraviolet and anti-corrosion capabilities. The open heat dissipation structure is not affected by internal air turbidity and dust accumulation, adapting to harsh outdoor working conditions of global new energy projects.
7. Fast Installation & Complete Export Configuration
Fully pre-assembled and debugged in the factory, with on-site foundation fixing and cable connection only, greatly shortening the construction cycle of new energy projects. Support full parameter customization: capacity, voltage grade (10kV/35kV), tap range, protection logic and outgoing loops. Provide complete IEC type test report, ISO9001, CE certification and full set of export customs clearance documents.
3-year global full-machine warranty, lifelong factory-cost spare parts supply, complete English operation and maintenance manuals and global technical support services.
Rated Capacity (kVA) | HV/LV Voltage (kV) | No-Load Loss (W) | Load Loss (W) | No-Load Current (%) | Short-Circuit Impedance (%) |
|---|---|---|---|---|---|
500 | 10/0.69 | 560 | 3650 | 1.1 | 4.0 |
630 | 10/0.69 | 680 | 4200 | 1.0 | 4.5 |
800 | 10/0.69 | 800 | 4850 | 0.9 | 4.5 |
1000 | 10/0.69 | 930 | 5800 | 0.8 | 4.5 |
1250 | 10/0.69 | 1120 | 6900 | 0.8 | 4.5 |
1600 | 10/0.69 | 1350 | 8200 | 0.7 | 4.5 |
2000 | 10/0.69 | 1580 | 9500 | 0.7 | 5.0 |
2500 | 10/0.69 | 1850 | 11200 | 0.6 | 5.0 |
Q1: What is Huashi Box Substation (Huabian)?
A: Huabian is a new energy special prefabricated box substation, which integrates the advantages of European and American box substations. It adopts an open heat dissipation structure, specially designed for photovoltaic and wind power boost grid-connected scenarios, and fully complies with IEC international standards.
Q2: What is the core difference between Huabian, European and American box substations?
A: American type is fully sealed with poor heat dissipation, suitable for conventional distribution; European type is fully compartmentalized with closed heat dissipation, limited full-load operation capacity; Huabian adopts external open radiator design, with excellent continuous full-load heat dissipation performance, which is the exclusive preferred equipment for new energy power stations.
Q3: What are the differences between the two pricing models?
A: 0.0901 USD/W is standard IEC efficiency model with low initial investment, suitable for distributed new energy projects; 0.102 USD/W is ultra-low loss energy-saving model, which effectively reduces long-term operation loss of power stations, with a unit price increase of about 13.21%. Both adopt full pure copper winding.
Q4: What application scenarios is Huabian suitable for?
A: It is widely used in centralized photovoltaic power stations, distributed photovoltaics, onshore and offshore wind farms, desert and Gobi new energy bases and other scenarios, adapting to long-term full-load, intermittent and fluctuating new energy power generation operation conditions.
Q5: Can customized parameters and functions be supported?
A: Fully customizable. Support 10kV/35kV high voltage grade, various capacity specifications, intelligent four-remote monitoring, dual power switching and reactive power compensation functions, meeting personalized design requirements of different new energy projects.
Q6: What certification and after-sales services are provided?
A: Provide full set of IEC type test reports, ISO9001, CE certificates and export customs clearance documents. Support 3-year global full-machine warranty, lifelong cost-price spare parts supply and overseas remote & on-site technical guidance.
