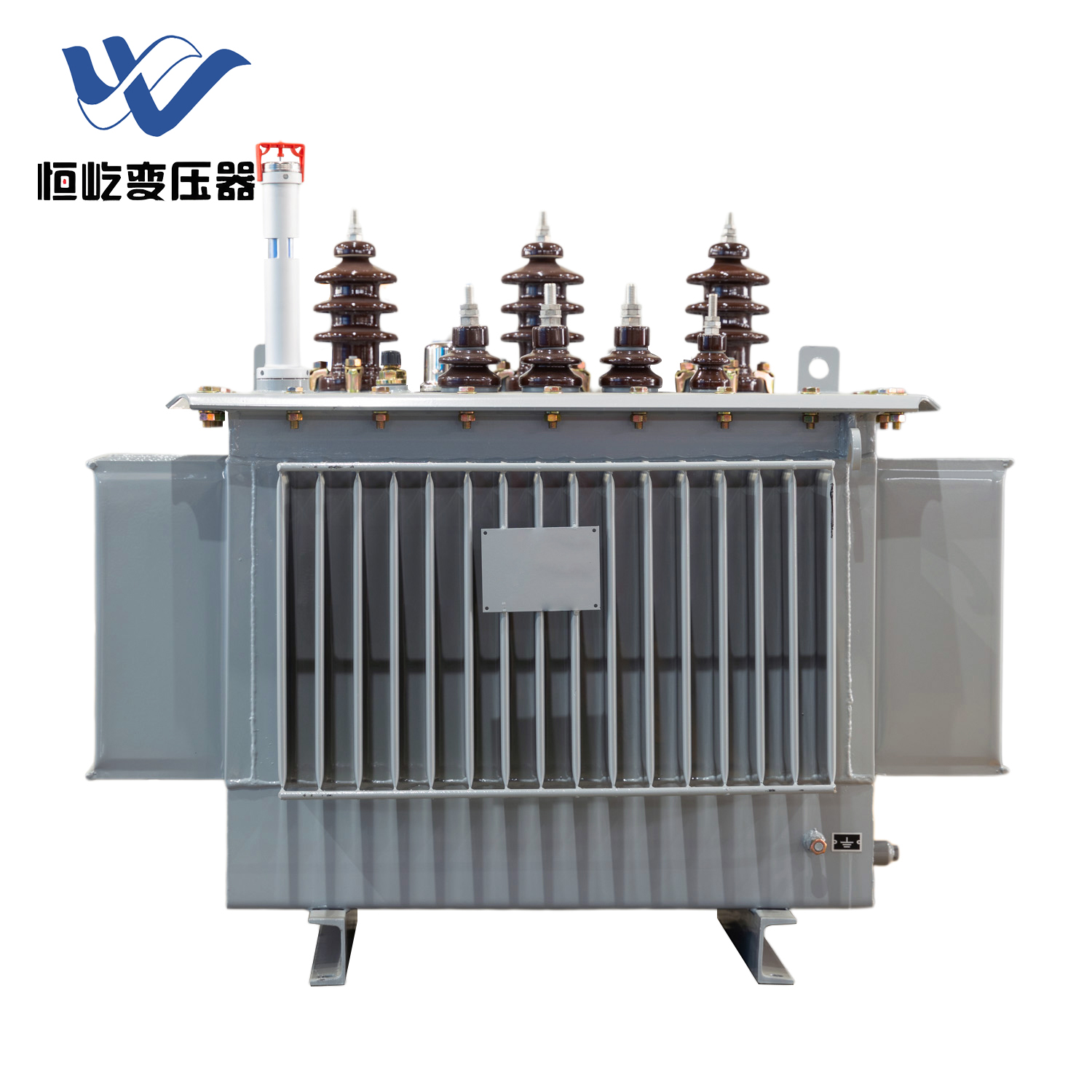

Engineered specifically for the demanding 30kV/0.4kV 50Hz power distribution networks, this 30kV oil-immersed main transformer serves as the resilient heartbeat of large open-pit mines in Zambia, centralized photovoltaic (PV) power stations, heavy industrial parks, and remote rural overhead power grids. Built to strictly comply with IEC 60076 and GB 1094 international standards, it utilizes premium mineral insulating oil to deliver exceptional internal insulation and rapid heat dissipation. When operating, the low, steady hum of its precision-engineered core signifies a stable, high-voltage performance designed to minimize energy waste. We offer the full series of S11, S13, and S15 all-copper winding transformers, balancing low comprehensive procurement costs with outstanding overload capacity. To precisely match your long-term operational budget, two unit price standards are available: 0.0901 USD/W and 0.102 USD/W. Whether powering critical infrastructure construction projects or continuous mining operations, this transformer ensures uninterrupted energy distribution.
Power stability in unpredictable environments requires a resilient defense mechanism. The high-voltage winding of this transformer is meticulously wrapped with multi-layer, thickened, high-strength insulating paper. This intricate wrapping significantly upgrades the lightning impulse withstand level, empowering the unit to effectively resist frequent lightning strikes, grid switching surges, and the severe voltage fluctuations typical of Zambia’s 30kV overhead mining power grids. By preventing insulation breakdown failures, it safeguards your critical operations.
Every coil features 99.99% oxygen-free pure copper wire winding, offering excellent electrical conductivity and a formidable anti-short-circuit impact performance. It maintains stable continuous operation even under the harsh harmonic loads generated by heavy mining equipment and PV inverters. Furthermore, we enforce strict quality control and Factory Acceptance Testing (FAT) throughout the entire manufacturing process. Before leaving our facility, 100% of our units pass rigorous partial discharge detection (<30pC) and lightning impulse voltage tests, ensuring zero-defect delivery. We deeply integrate surge arresters and fail-safe mechanisms to provide ultimate protection against extreme grid surges.
At the core of this transformer lies a meticulously assembled structure made from high-permeability, low-loss cold-rolled oriented silicon steel sheets. By adopting an advanced full miter lap cutting process, we greatly reduce no-load energy loss and operational noise, creating a highly efficient magnetic circuit. To accommodate varying project lifecycles and capital expenditure strategies, we provide two distinct quotation standards:
0.0901 USD/W: The standard S11 energy efficiency model. It features a lower initial purchase cost, making it the ideal choice for short-cycle temporary projects, rapid infrastructure deployments, or facilities with strict upfront budget constraints.
0.102 USD/W: The S13 ultra-low loss energy-saving model. While the unit price is approximately 13.21% higher than the standard version, it effectively cuts long-term electricity consumption. This model is perfectly suited for 24-hour uninterrupted mining operations and centralized photovoltaic power stations, delivering a rapid return on investment through sustained energy savings.
The internal insulating oil performs the critical dual functions of electrical insulation and thermal heat dissipation. The tank is equipped with precisely engineered corrugated radiators that maximize surface area for highly efficient natural cooling. For operations anticipating heavy demand spikes, optional external cooling fans can be integrated to safely support a 120% short-time overload operation without compromising internal integrity.
Standard complete supporting accessories include an oil conservator, explosion-proof pressure relief valve, oil level indicator, drain valve, winding temperature sensor, grounding bolt, heavy-duty lifting lugs, and an anti-theft oil plug—fully adapting to Zambia's outdoor field installation conditions.
To meet modern grid demands, this transformer features intelligent monitoring and IoT connectivity. Clients can opt for an RS485 communication interface and smart temperature control terminals, enabling real-time status tracking, over-temperature alarms, and predictive maintenance for direct integration into automated power grids. Additionally, a deeply integrated Buchholz (gas) relay and temperature-trip linkage device provide reliable fail-safe protection during short-circuit faults. For environmentally conscious projects, we offer an optional upgrade to FR3 high-fire-point vegetable insulating oil, which is non-toxic and biodegradable, helping enterprises achieve their ESG carbon reduction goals.
Designed to endure the harshest elements, the transformer tank is constructed from thickened, heavy-duty steel plates. The exterior undergoes a rigorous surface treatment process: deep sandblasting, application of a premium anti-rust primer, and a final coating of outdoor weather-resistant topcoat. This multi-layered defense effectively resists the year-round high temperatures, intense high humidity, and light salt fog characteristic of Zambia's climate.
To guarantee long-term operational integrity, all sealing gaskets are manufactured from high-temperature resistant industrial rubber. This IP65/IP67 level fully sealed structural protection prevents any oil leakage during extended outdoor running and effectively combats internal insulation aging. Consequently, the unit boasts an exceptional design life extending up to 25-30 years. Thanks to this maintenance-free exterior, the transformer can be directly installed in open-air environments without the need for an independent, costly power distribution room.
Ensuring your equipment arrives safely and on schedule requires meticulous logistics planning. We offer specialized freight solutions tailored to your project timeline and budget:
Sea shipment: For bulk large orders and standard timelines, the transformer is filled with its full capacity of insulating oil before delivery. It is securely packed within an ISPM15 certified fumigation wooden case. This method provides a low overall logistics cost while maintaining the equipment in a ready-to-deploy state.
Air shipment: When urgent delivery is critical, we execute mandatory pre-treatment processes for aviation safety. We fully drain all insulating oil from the tank, radiator, and oil conservator; perform hot air drying to eliminate residual oil film on inner walls and coils; block all pipe ports, and fill the interior with dry nitrogen for pressure sealing. A magnetic inspection report and non-dangerous goods appraisal document are required for airline acceptance. Extra fees for oil draining, drying, and nitrogen sealing will be generated, which dry-type transformers do not need.
We recognize that every power infrastructure project has unique technical demands. Therefore, we offer extensive customizable parameters: rated capacity, a precise 30kV tap range (±2×2.5% / ±5%), Dyn11/Yyn0 connection group, specific short-circuit impedance values, mining anti-surge reinforced structures, and specialized anti-theft oil plug designs.
To facilitate smooth importation, we provide complete customs clearance documents for Zambia: commercial invoice, packing list, fumigation certificate, factory type test report, magnetic inspection certificate (for air shipment), and ISO9001 & CE certificates.
Beyond delivery, we commit to full life-cycle Operation & Maintenance (O&M) services. This includes a 3-year global full machine warranty and lifelong spare parts supply at factory cost. Each unit is equipped with a full English installation & operation manual. To drastically reduce your long-term operating costs, we offer end-to-end technical support—from Factory Acceptance Testing (FAT) to dispatching technical engineers directly to Zambia for on-site installation, grid-connection commissioning guidance, and localized maintenance training upon customer request.
A: Yes, air freight is entirely feasible for urgent project timelines, but a full set of mandatory pretreatment is strictly required for aviation safety:
1. We completely drain all insulating oil from the main tank, corrugated radiators, and the oil conservator;
2. We carry out intensive hot air drying to meticulously remove any residual oil film on the copper coils and tank inner walls;
3. We seal all pipe openings and fill the interior with dry nitrogen for stable pressure maintenance during the flight;
4. We prepare a detailed magnetic inspection report and a non-dangerous goods identification certificate for airline check-in. Please be aware that additional charges for the oil draining, drying, and nitrogen sealing processes will be incurred, which dry-type transformers do not require.
A: The 0.0901 USD/W option represents our S11 standard loss oil transformer, which features a significantly lower initial procurement cost, making it ideal for budget-conscious or short-term installations. The 0.102 USD/W option is the S13 ultra-low loss energy-saving model. While its unit price is about 13.21% higher, it drastically reduces long-term power consumption costs, offering excellent ROI for continuous operations. Both models adopt premium 99.99% full pure copper winding for superior conductivity.
A: To ensure immediate operational readiness, the transformer comes fully equipped with an oil conservator, an explosion-proof pressure relief valve, a precise oil level gauge, a heavy-duty drain valve, a winding thermometer, a secure grounding bolt, robust lifting lugs, an anti-theft oil plug, and specialized transportation fixing supports.
A: Absolutely. We utilize a thickened steel tank treated with an outdoor anti-corrosion coating, specifically engineered to withstand harsh weather. This is matched with high-temperature resistant sealing rubber gaskets (IP65/IP67 equivalent) to completely avoid oil leakage under all-year high temperatures and intense sunlight. It can be confidently installed outdoors without the expense of building a special power distribution room.
A: We supply a comprehensive suite of documentation to ensure smooth import procedures, including the ISO9001 quality certificate, CE certificate, IEC full factory test report (FAT), ISPM15 fumigation certificate for wooden packing, commercial invoice, packing list, magnetic inspection report (essential for air freight), and a non-hazardous goods appraisal. We provide professional document guidance tailored for local customs clearance.
A: We provide a 3-year global full machine warranty. Our support includes complete English operation and maintenance manuals, along with a permanent supply of replacement spare parts at factory cost. Should your project require it, we can dispatch professional technical engineers directly to your site in Zambia for hands-on installation and commissioning guidance as required.
