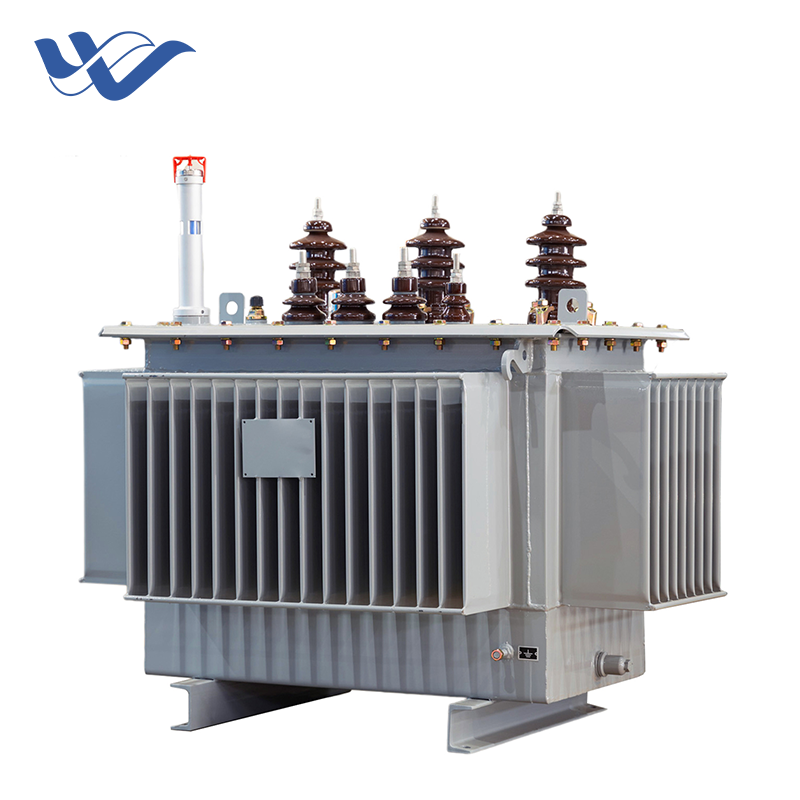

Engineered specifically for 33kV/0.4kV 50Hz medium-voltage power distribution networks, our 33kV oil-immersed main transformers deliver uncompromised reliability across demanding environments. These units are widely adopted in large open-pit mines in Zambia, centralized photovoltaic power stations, heavy industrial parks, remote rural overhead grids, and critical urban substation infrastructure projects. Backed by decades of manufacturing expertise and global engineering case studies, our transformers strictly comply with IEC 60076 and GB 1094 international standards. They utilize premium mineral insulating oil for superior internal insulation and highly efficient heat dissipation. Featuring mature manufacturing technology, a low overall procurement cost, strong overload resistance, and exceptionally reliable high-voltage performance, our full series of S11 and S13 all-copper winding transformers are readily available for immediate deployment. To perfectly match the varying long-term operation budgets of African mining and PV projects, we provide two precise unit price standards for selection: 0.0901 USD/W and 0.102 USD/W.
The 33kV high-voltage winding architecture incorporates a multi-layer thickened composite insulating paper structure. This meticulous design upgrades the lightning impulse withstand capacity up to a formidable 200kV, establishing a massive insulation safety margin. When deployed in the field, this reinforced insulation effectively resists the frequent lightning strikes, grid switching surges, and severe voltage fluctuations characteristic of Zambia’s unstable 33kV overhead mining power grids, completely avoiding catastrophic insulation breakdown and creepage faults. Furthermore, our top-tier raw material supply chain ensures that all coils are densely wound utilizing 99.99% oxygen-free pure copper wire, complemented by H62 high-conductivity copper busbars. You can visually appreciate the precision-wound coils that guarantee excellent electrical conductivity and outstanding short-circuit impact resistance. This structural integrity translates to stable, continuous operation even when subjected to the harsh harmonic loads generated by heavy mining equipment and large-scale PV inverters.
The iron core of each unit is meticulously manufactured using industry-leading, high-permeability, low-loss cold-rolled oriented silicon steel sheets. By adopting an advanced full miter lap cutting technology, the core joints are seamlessly aligned, which significantly reduces no-load loss and minimizes the low-frequency humming noise during active operation. This premium material selection builds a solid foundation for an extended lifespan. To align with specific project demands and capital expenditure plans, we offer two transparent quotation standards:
0.0901 USD/W: This represents our standard S11 energy efficiency model. It offers a low initial purchase cost while maintaining structural integrity, making it highly suitable for short-cycle temporary construction projects or sites with strict initial budget caps.
0.102 USD/W: This is the S13 ultra-low loss energy-saving model. It is engineered to effectively cut long-term power consumption costs, making it the perfect investment for 24-hour uninterrupted mining operations and centralized photovoltaic power stations. The unit price is exactly 13.21% higher than the standard version, a premium that is quickly recovered through daily energy savings.

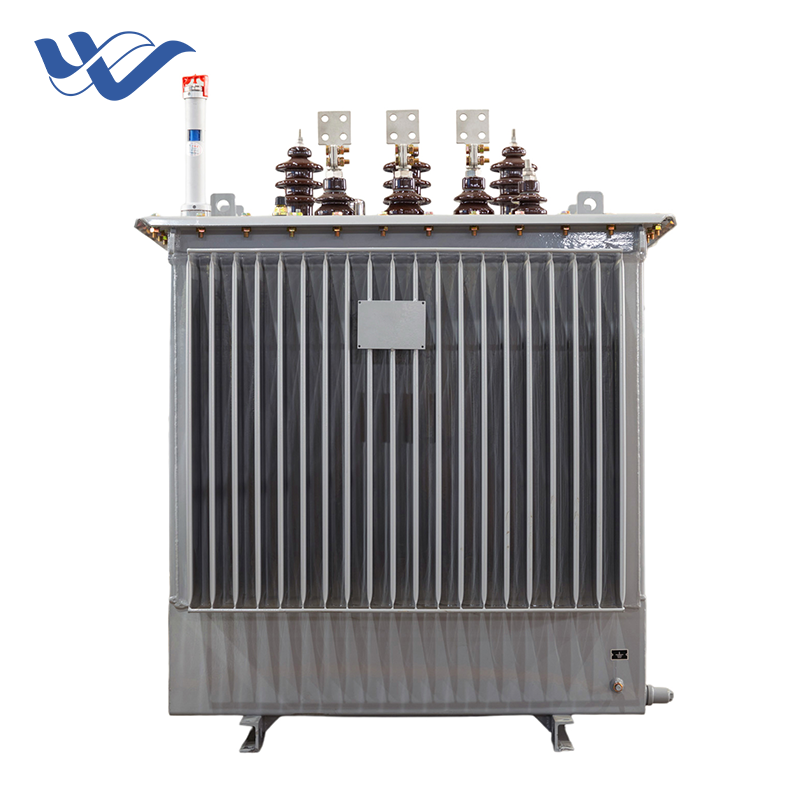

The premium mineral insulating oil circulating within the tank performs the dual functions of vital electrical insulation and rapid heat dissipation. The exterior is equipped with precisely welded corrugated radiators that facilitate highly efficient natural heat dissipation. For extreme operational demands, external cooling fans are available as an option to comfortably support 120% short-time overload operation without compromising internal components. Beyond basic cooling, we integrate a comprehensive safety protection system. Standard complete supporting accessories include a heavy-duty oil conservator, an explosion-proof pressure relief valve, a highly visible oil level indicator, a drain valve, a winding temperature sensor, grounding bolts, lifting lugs, and an anti-theft oil plug, fully adapting to Zambia's outdoor field installation conditions. To further eliminate hidden safety hazards, clients can opt for advanced Buchholz relays, smart temperature controllers, and online dissolved gas analysis (DGA) monitors, providing real-time early warnings for maximum operational security.

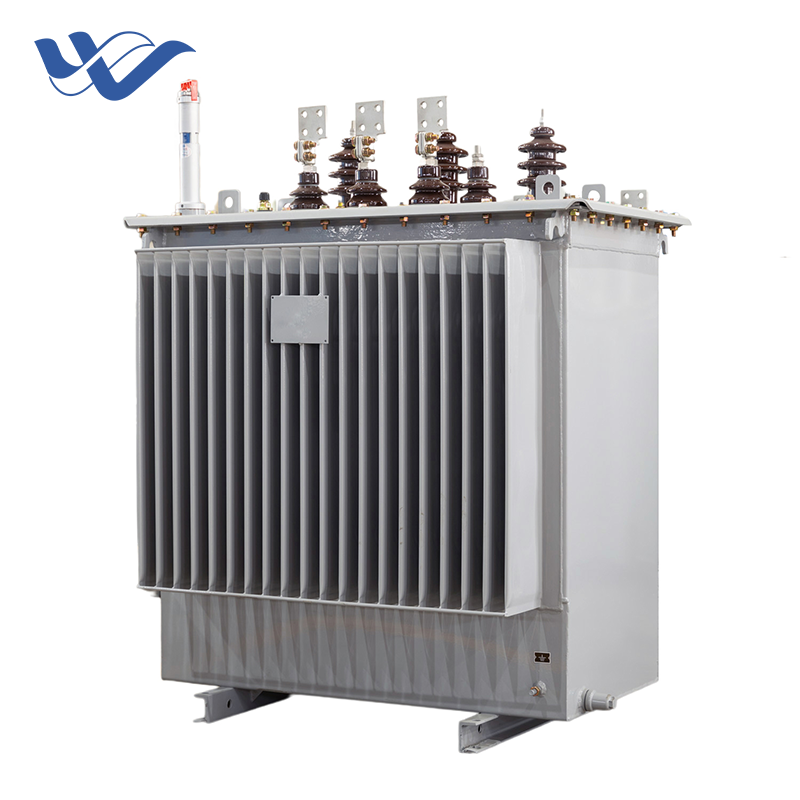

The transformer tank is constructed from heavy-duty thickened steel plates, engineered to withstand physical impacts and environmental degradation. The surface undergoes a rigorous sandblasting process, followed by the application of a dense anti-rust primer and a specialized outdoor weather-resistant topcoat. Running your hand along the exterior, you can feel the tough, textured finish designed to resist year-round high temperatures, intense high humidity, and light salt fog commonly encountered in Zambia. All sealing gaskets are forged from high-temperature resistant industrial rubber to absolutely prevent oil leakage during decades of continuous outdoor running, allowing direct installation outdoors without the need for an independent distribution room. Before leaving our facility, every single tank undergoes strict Factory Acceptance Testing (FAT). We strictly execute IEC standard protocols, including partial discharge analysis, lightning impulse verification, temperature rise evaluations, and pressurized leakage tests, ensuring every piece of equipment achieves zero-defect commissioning upon arrival.
Transporting heavy electrical infrastructure across continents requires meticulous planning and heavy-duty packaging protection. We have developed specialized logistics protocols to fully withstand the turbulence of long-distance sea-rail multimodal transport and the bumpy, harsh inland road conditions of Africa.
Sea shipment: Units are processed via vacuum oil injection to fill them completely with insulating oil before delivery. They are then securely wrapped in moisture-proof materials and packed within heavy-duty, reinforced ISPM15 fumigation wooden cases. This method ensures a low comprehensive logistics cost and is highly recommended for mass bulk orders.
Air shipment: Due to aviation safety regulations, mandatory pre-treatment procedures are strictly enforced. We must fully drain all insulating oil from the main tank, radiators, and oil conservator. This is followed by exhaustive hot air drying to eliminate any residual oil film on the inner walls and copper coils. We then block all pipe ports and fill the cavity with dry nitrogen (dew point ≤-40℃) for reliable pressure sealing. A certified magnetic inspection report and a non-dangerous goods appraisal document are required for airline acceptance. Extra fees for oil draining, drying, and nitrogen sealing will be generated, which dry-type transformers do not need.

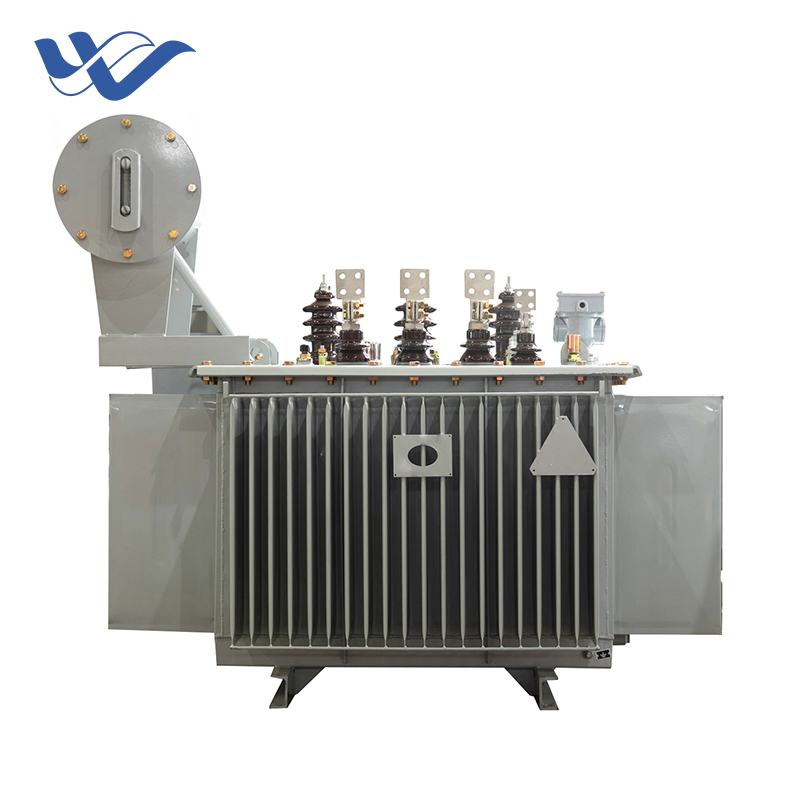

Relying on decades of transformer research and manufacturing experience within our modernized, large-scale production base, we guarantee the highly efficient and stable delivery of large-volume project orders. We offer extensive deep customization and flexible adaptation capabilities to perfectly match complex power grids and special operational conditions. Customizable parameters include specific rated capacities, a precise 33kV tap range (±2×2.5% / ±5%), Dyn11/Yyn0 connection groups, specific short-circuit impedance values, mining anti-surge reinforced structures, and anti-theft oil plug designs. We also offer an optional on-load tap changer (OLTC) tailored for areas suffering from severe voltage fluctuations. To facilitate smooth importation, we provide complete customs clearance documents for Zambia: commercial invoice, packing list, fumigation certificate, factory type test report, magnetic inspection certificate (specifically for air shipment), along with ISO9001, CE, and IEC certificates. We stand behind our engineering with a comprehensive 3-year global full machine warranty and lifelong spare parts supply at factory cost, equipped with a full English installation and operation manual. Upon customer request, we can readily arrange expert technical engineers to travel to Zambia for on-site installation and commissioning guidance.
A: Yes, air freight is entirely possible for urgent project timelines, but a full set of mandatory pretreatment is required to comply with aviation safety standards:
1. Completely drain all insulating oil from the main tank, corrugated radiator, and oil conservator; 2. Carry out intensive hot air drying to remove any residual oil film on the internal coils and tank inner walls; 3. Seal all openings securely and fill the unit with dry nitrogen for strict pressure maintenance; 4. Prepare a certified magnetic inspection report and non-dangerous goods identification certificate for airline check-in. Additional charges for oil draining, drying, and nitrogen sealing will be incurred, which dry-type transformers do not require.
A: The 0.0901 USD/W option is our S11 standard loss oil transformer, designed to provide a lower initial procurement cost for budget-conscious or short-term projects. The 0.102 USD/W option is the S13 ultra-low loss energy-saving model, which can significantly reduce long-term power consumption costs, with a unit price exactly 13.21% higher than the standard version. Both models adopt full 99.99% pure copper winding to ensure maximum conductivity and operational stability.
A: To guarantee safe and efficient operation upon arrival, every unit is equipped with a comprehensive suite of standard accessories. This includes a heavy-duty oil conservator, an explosion-proof pressure relief valve, a clear oil level gauge, a bottom drain valve, a precise winding thermometer, grounding bolts, high-strength lifting lugs, an anti-theft oil plug, and transportation fixing supports to prevent internal movement during transit.
A: Yes, it is specifically engineered for such demanding climates. A thickened steel tank and a multi-layer outdoor anti-corrosion coating are adopted to combat environmental wear. This is matched with high-temperature resistant sealing rubber gaskets to completely avoid oil leakage under all-year high temperatures. Consequently, the equipment can be safely installed outdoors without the financial burden of constructing a special indoor power distribution room.
A: We supply a complete and fully compliant documentation package to ensure smooth border processing. This includes the ISO9001 quality certificate, CE certificate, IEC full factory test report (FAT), ISPM15 fumigation certificate for wooden packaging, commercial invoice, detailed packing list, magnetic inspection report (specifically required for air freight), and the non-hazardous goods appraisal. We provide professional document guidance for local customs clearance to prevent any project delays.
A: We offer a comprehensive 3-year global full machine warranty. To support your local maintenance teams, we supply complete English operation and maintenance manuals, and we commit to providing necessary spare parts at factory cost permanently. Should your project require hands-on expertise, we can dispatch professional technical engineers directly to your site in Zambia for expert installation and commissioning guidance as required.
